PelletSave 模块化称重式中央混料配送系统



PelletSave是一个模块化的称重式中央混料配送系统, 按客户需求定制,可同时处理多组分原材料和为多种成型机混料配送。PelletSave整合了一个完善的软件包,可综合规划整个工厂的用料并对实际消耗量进行控制,具有经济效益。

PelletSave is a modular central blending and gravimetric feeding system for multi-ingredient/multi-processing-machine combinations, custom-engineered to meet customers’ needs. The PelletSave is extremely cost-effective, and incorporates a sophisticated software package enabling comprehensive formulation and consumption control for a complete plant.

与机边混料配送相比, 明显减少投资成本
Significant saving in initial installation costs compared to local dosing systems
可混配多达12个组分的原材料,并配送给多达50台不同的成型机(包括注塑机,挤出机及吹塑机)
Up to 12 ingredients in each mixture and up to 50 processing machines (extruders, injection molding or extrusion blow molding machines)
为工厂内所有的成型机,不管大型或小型的混料配送,提供一个整体解决方案,集中控制,操作简单
A complete solution for all processing machines, big and small, with a unified  and simple operation method
具有高精度而稳定的配料能力
High dosing accuracy and homogenous blending capabilities
完善的软件,保证了混料精益与配送及时
Sophisticated software controls mixture formulation, preparation and destination
在成型机换料时,不需要人工操作(开/关阀门,更变软管对接,清理余料,等等)
No need for manual intervention (opening/closing valves, changing hoses, cleaning off residue, etc.) when switching to new job with different mixture composite
简单而可靠的中央数据收集,汇总每台成型机每个工作单的原材料消耗量
Easy and reliable central data collection for total material consumption for each processing machine and specific job
与传统的系统相比,活动部件少,机械结构简单而稳固
Mechanically simple and robust, with few moving parts compared to conventional systems

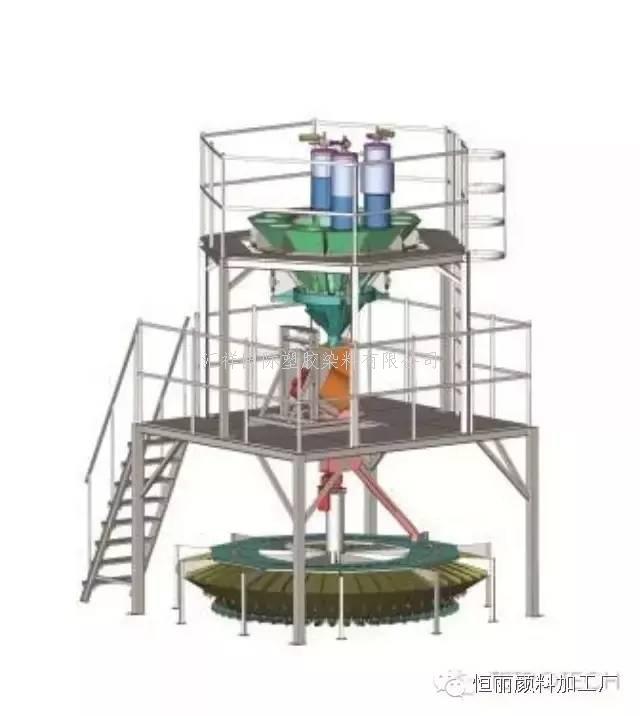

PelletSave主要由以下几个部分构成:

PelletSave is mainly composed of the following sub-systems:

-- 原材料组分供料料斗

   Raw material intermediate hoppers (bins)

-- 中央称重混料配送单元

   Central weighing, blending and feeding unit

-- 分送器及已配料缓冲料斗

   Dispenser unit and mixed material buffer bins

-- 中央控制器

   Central controller
